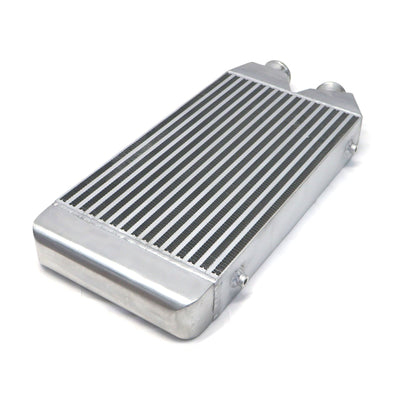

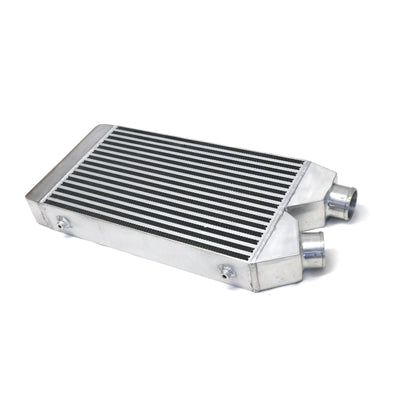

Spec-A Large Intercooler

Max Horsepower Capacity: 250-600HP
Core Length: 18.9" (480 mm)
Core Height: 11.2" (285 mm)
Core Thickness: 3" (75 mm)
Inlet / Outlet Size: 2.44" (62 mm)
End to End Length: 25.4" (645 mm)
End to End Height: 12.2" (310 mm)
Working Pressure: 35-40 psi
Pressure Drop: 0.2-0.5 @15psi, 2-5psi @35psi
Material: 100% Aluminum
Design: Bar and Plate = High Flow
Construction: Machine Cut & Stamped, Hand Welded
Finish: Polished
Net Weight: 16 lbs
